Product Overview

YLY-03S Polariscope (Glass Stress Tester) is suitable for measuring internal stress values in various glass products, including glassware, glass measuring instruments, glass containers, and glass bottles for pharmaceutical and food packaging.

Testing Principle

YLY-03S Polariscope is an instrument that uses the principle of polarized light interference to inspect internal stress in glass or the birefringence effect in crystals. Equipped with a sensitive tint plate and utilizing the quarter-wave plate compensation method, this instrument can not only qualitatively or semi-quantitatively measure the internal stress in glass based on the interference color sequence in the polarization field, but also accurately measure the numerical value of the internal stress.

Key Features & Advantages

Qualitative and quantitative test modes: wide range of applications

Touch screen display: real-time display of optical path difference and stress values

User hierarchical permission management: ensures data integrity and standardization

Built-in micro printer: quickly prints each measurement result, as well as statistical maximum, minimum, and average values

Data storage capacity: stores no less than 500 sets of data, with 20 measurement values per set

Adjustable test space: accommodates a wide range of products

ISP online upgrade capability: provides customized service

Applications

Designed for suitable for glass bottle manufacturers, optical instrument manufacturers, and laboratories for measuring stress values in optical glass, glass products, and other optical materials.

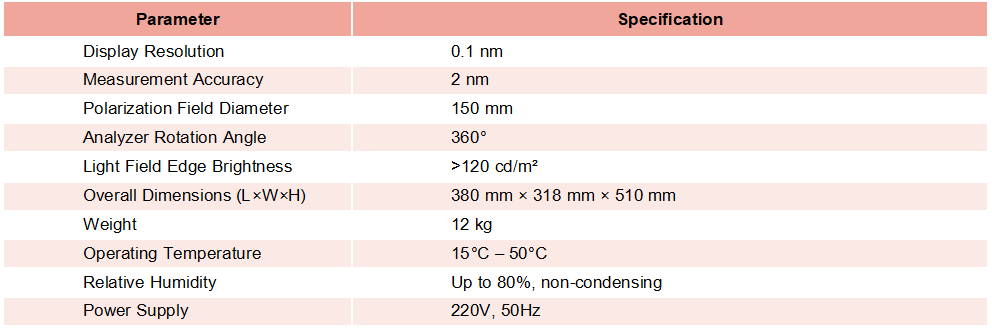

Technical Specifications

Compliance & Standards

ASTM C148, YBB00332002-2015, YBB00162003-2015, GB12415, GB15726, GB4545
