Product Overview

By pairing the system with customized testing fixtures, the Leak-M can seamlessly adapt to a vast range of materials and industries—including medical devices, consumer packaging, daily cosmetics, electronics, and automotive components. It is the premier choice for production-line quality assurance, lab spot-checks, and mass manufacturing environments.

Key Features & Advantages

Independent Multi-Channel Testing (No Mutual Interference)

Equipped with 4 testing stations as standard (customizable to more channels). Each channel operates completely independently; a failure or leak in one station will not interfere with or disrupt the testing process of the other channels.

Fully Customized Channel Configurations

Allows operators to individually configure specific pressure thresholds and testing durations for each separate channel. This unparalleled flexibility enables you to run different test profiles simultaneously on a single machine.

Ultra-Fast & Smart Processing

Powered by a high-speed upgrade microprocessing chip, running speeds are drastically accelerated. The system automatically judges "Pass" or "Fail" for each station and activates a smart visual/audible alarm instantly if a leaking sample is detected.

Premium Imported Components & Reliability

Built with world-class imported sensors and pneumatic actuating components to ensure exceptional reliability, long-term durability, and an accuracy tolerance of within ±1%.

Intuitive Interaction & Instant Reporting

Features a vivid color LCD touchscreen for simple, user-friendly operation. Includes a built-in micro-printer to instantly output comprehensive test results right on the factory floor or laboratory bench.

Data Compliance & Security

Features a unique multi-level user authority management system to secure raw test data, prevent unauthorized setting alterations, and guarantee strict data integrity. Supports ISP online firmware upgrades for personalized future feature expansions.

Applications

Medical Devices: Sterile pouches, IV tubes, pipettes, and fluid delivery systems.

Consumer Goods & Cosmetics: Detergent bottles, lotion pumps, caps, and cosmetic tubes.

Electronics & Electrical: Sealed electronic enclosures, sensors, and components.

Automotive Industry: Automotive headlights, tail lights, valves, and molded parts.

General Packaging: Various plastic, foil, or composite sealed mass-produced containers.

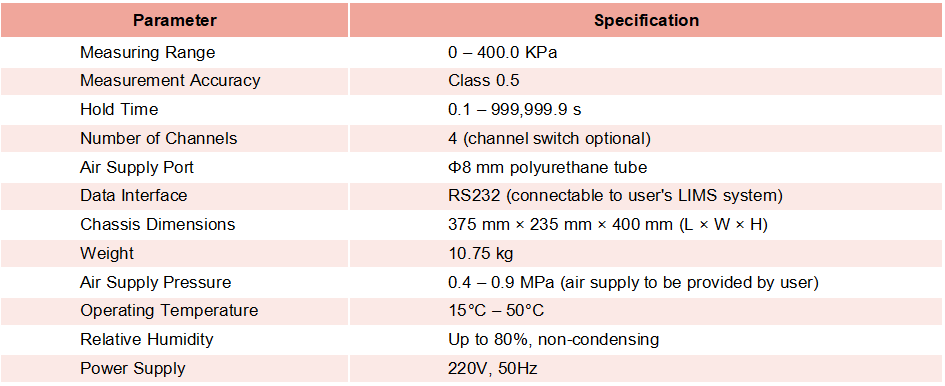

Technical Specifications

Compliance & Standards

YY 0285.1-2017, GB/T 15812.1-2005, YY0489-2004, GB 8368-2018, IS0 10555-1:2013, EN 1618:1997, EN 1617:1997, IS0 8536-4:2010
